Backup

This section guides you through configuring and managing database backups.

Console (UI)

When deploying to cloud providers (such as AWS, GCP, Azure) using the Console UI, the storage bucket and backups with pgBackRest are automatically configured.

info

Both DigitalOcean and Hetzner Cloud require providing access keys for the bucket. This option is available in Expert Mode.

To view and manage backups in the Console UI, open Clusters in the sidebar and select Backups.

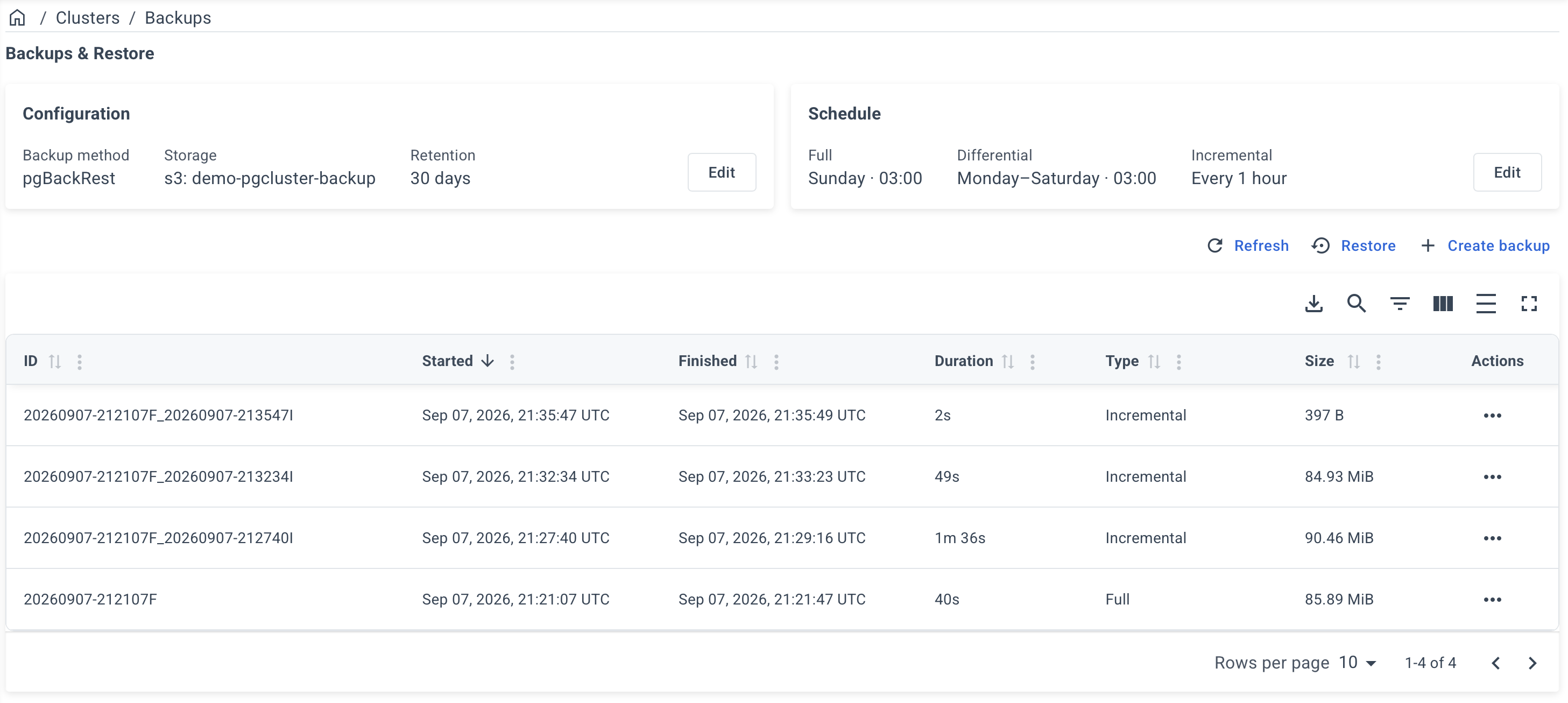

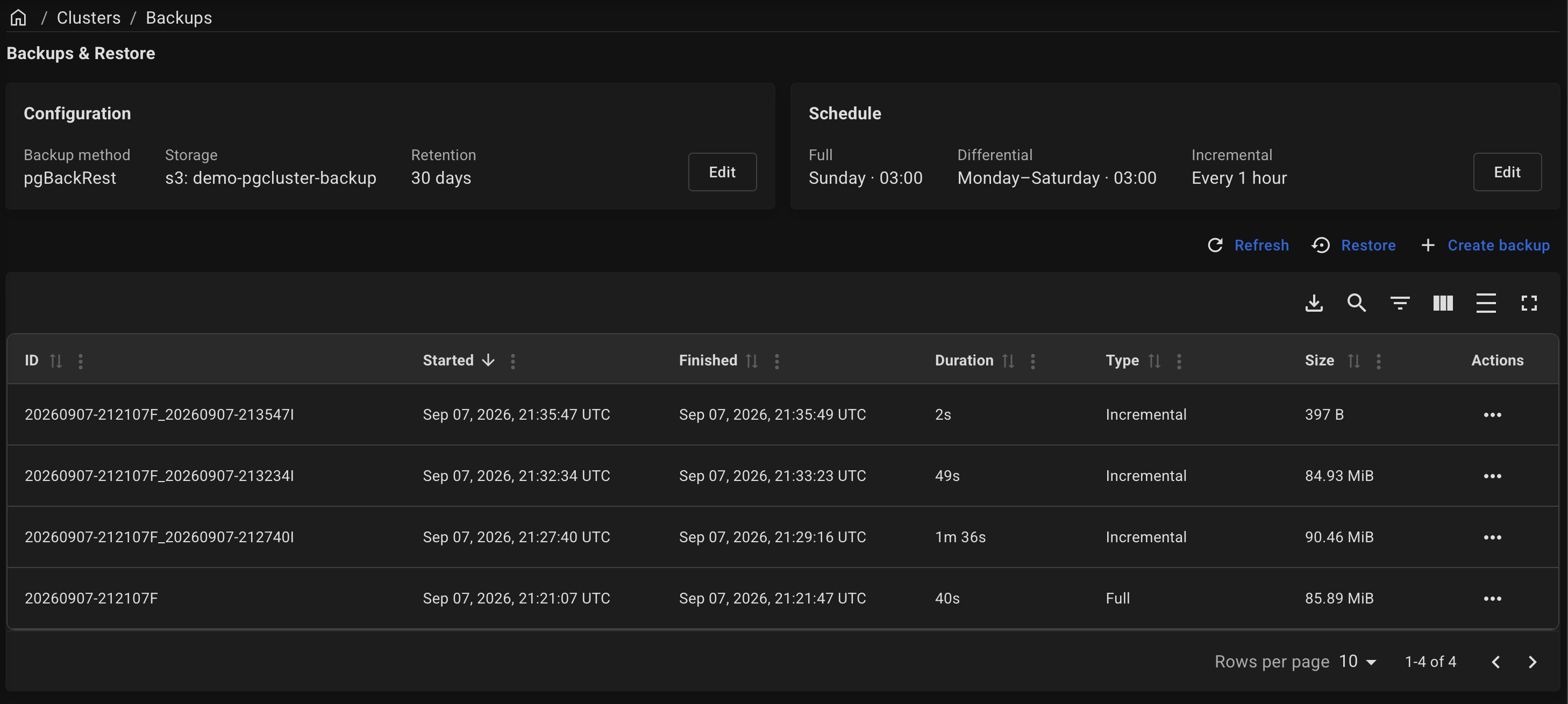

The Backups & Restore page displays the current backup configuration and schedule. Use the Edit buttons to update the backup configuration, retention period, and backup schedule.

Use the actions above the backup list to:

• click Refresh to reload the list of available backups;
• click Restore to restore the cluster from a backup. See Restore for details;
• click Create backup to optionally start an additional on-demand backup outside the scheduled backup cycle.

The backup list shows the backup ID, start and finish times, duration, type, size, and available actions for each backup.

Command line

note

When deploying to cloud providers (cloud_provider variable) such as AWS, GCP, Azure, the storage bucket and backups with pgBackRest are automatically configured, controlled by the pgbackrest_auto_conf variable (specify false if you prefer to manually configure the backup).

The following backup tools are supported:

• pgBackRest
• WAL-G

pgBackRest

tip

pgBackRest documentation: Configuration Reference

To use pgBackRest, specify the pgbackrest_install: true variable.

Examples of configuration variables:

pgbackrest config ("posix" ssh mode)

# An example of a configuration using a dedicated backup server (via ssh)

pgbackrest_install: true
pgbackrest_install_from_pgdg_repo: true
pgbackrest_stanza: "{{ patroni_cluster_name }}"  # stanza name
pgbackrest_repo_type: "posix"
pgbackrest_repo_host: "10.128.64.110"  # change this value
pgbackrest_repo_user: "postgres"
pgbackrest_conf_file: "/etc/pgbackrest/pgbackrest.conf"
pgbackrest_conf:
  global:  # [global] section
    - { option: "log-level-file", value: "detail" }
    - { option: "log-path", value: "/var/log/pgbackrest" }
    - { option: "repo1-type", value: "{{ pgbackrest_repo_type | lower }}" }
    - { option: "repo1-host", value: "{{ pgbackrest_repo_host }}" }
    - { option: "repo1-host-user", value: "{{ pgbackrest_repo_user }}" }
    - { option: "repo1-path", value: "/var/lib/pgbackrest" }  # the path to the backup directory on the backup server
    - { option: "spool-path", value: "/var/spool/pgbackrest" }
    - { option: "archive-async", value: "y" }
    - { option: "archive-get-queue-max", value: "1GiB" }
#    - { option: "archive-push-queue-max", value: "100GiB" }
  stanza:  # [stanza_name] section
    - { option: "process-max", value: "4" }
    - { option: "log-level-console", value: "info" }
    - { option: "recovery-option", value: "recovery_target_action=promote" }
    - { option: "pg1-socket-path", value: "{{ postgresql_unix_socket_dir }}" }
    - { option: "pg1-path", value: "{{ postgresql_data_dir }}" }
# dedicated backup server config
pgbackrest_server_conf:
  global:
    - { option: "log-level-file", value: "detail" }
    - { option: "log-level-console", value: "info" }
    - { option: "log-path", value: "/var/log/pgbackrest" }
    - { option: "repo1-path", value: "/var/lib/pgbackrest" }  # the path to the backup directory
    - { option: "repo1-retention-full", value: "4" }
    - { option: "repo1-retention-archive", value: "4" }
    - { option: "archive-check", value: "y" }
    - { option: "archive-copy", value: "n" }
    - { option: "repo1-bundle", value: "y" }
    - { option: "repo1-block", value: "y" }
    - { option: "start-fast", value: "y" }
    - { option: "stop-auto", value: "y" }
    - { option: "link-all", value: "y" }
    - { option: "resume", value: "n" }
    - { option: "backup-standby", value: "y" }
    - { option: "process-max", value: "2" }
# the stanza section will be generated automatically

pgbackrest_archive_command: "pgbackrest --stanza={{ pgbackrest_stanza }} archive-push %p"

Additionally specify the IP address of the backup server (in this example "10.128.64.110") in the inventory in the "pgbackrest" group.

pgbackrest config (Minio S3)

# An example of a configuration using S3 (Minio)

pgbackrest_install: true
pgbackrest_install_from_pgdg_repo: true
pgbackrest_stanza: "{{ patroni_cluster_name }}"  # stanza name
pgbackrest_repo_type: "s3"
pgbackrest_conf_file: "/etc/pgbackrest/pgbackrest.conf"
pgbackrest_conf:
  global:  # [global] section
    - { option: "log-level-file", value: "detail" }
    - { option: "log-path", value: "/var/log/pgbackrest" }
    - { option: "repo1-type", value: "{{ pgbackrest_repo_type | lower }}" }
    - { option: "repo1-path", value: "/pgbackrest" }  # logical path in bucket
    - { option: "repo1-s3-endpoint", value: "https://YOUR_MINIO_ADDRESS" }  # change this value
    - { option: "repo1-s3-key", value: "YOUR_MINIO_S3_KEY" }  # change this value
    - { option: "repo1-s3-key-secret", value: "YOUR_MINIO_S3_KEY_SECRET" }  # change this value
    - { option: "repo1-s3-bucket", value: "YOUR_MINIO_BUCKET" }  # change this value
    - { option: "repo1-s3-region", value: "eu-west-3" }  # change this value
    - { option: "repo1-s3-uri-style", value: "path" }
    - { option: "repo1-storage-verify-tls", value: "n" }
    - { option: "repo1-retention-full", value: "4" }
    - { option: "repo1-retention-archive", value: "4" }
    - { option: "archive-check", value: "y" }
    - { option: "archive-copy", value: "n" }
    - { option: "archive-async", value: "y" }
    - { option: "archive-get-queue-max", value: "1GiB" }
#    - { option: "archive-push-queue-max", value: "100GiB" }
    - { option: "spool-path", value: "/var/spool/pgbackrest" }
    - { option: "repo1-bundle", value: "y" }
    - { option: "repo1-block", value: "y" }
    - { option: "start-fast", value: "y" }
    - { option: "stop-auto", value: "y" }
    - { option: "link-all", value: "y" }
    - { option: "resume", value: "n" }
    - { option: "backup-standby", value: "y" }  # when set to 'y', standby servers will be automatically added to the stanza section.
    - { option: "process-max", value: "2" }
  stanza:  # [stanza_name] section
    - { option: "process-max", value: "4" }
    - { option: "log-level-console", value: "info" }
    - { option: "recovery-option", value: "recovery_target_action=promote" }
    - { option: "pg1-socket-path", value: "{{ postgresql_unix_socket_dir }}" }
    - { option: "pg1-path", value: "{{ postgresql_data_dir }}" }

pgbackrest_archive_command: "pgbackrest --stanza={{ pgbackrest_stanza }} archive-push %p"

pgbackrest config (AWS S3)

# An example of a configuration using AWS S3

pgbackrest_install: true
pgbackrest_install_from_pgdg_repo: true
pgbackrest_stanza: "{{ patroni_cluster_name }}"  # stanza name
pgbackrest_repo_type: "s3"
pgbackrest_conf_file: "/etc/pgbackrest/pgbackrest.conf"
pgbackrest_conf:
  global:  # [global] section
    - { option: "log-level-file", value: "detail" }
    - { option: "log-path", value: "/var/log/pgbackrest" }
    - { option: "repo1-type", value: "{{ pgbackrest_repo_type | lower }}" }
    - { option: "repo1-path", value: "/pgbackrest" }  # logical path in bucket
    - { option: "repo1-s3-key", value: "YOUR_AWS_S3_ACCESS_KEY" }  # change this value
    - { option: "repo1-s3-key-secret", value: "YOUR_AWS_S3_SECRET_KEY" }  # change this value
    - { option: "repo1-s3-bucket", value: "YOUR_BUCKET_NAME" }  # change this value
    - { option: "repo1-s3-endpoint", value: "s3.us-east-1.amazonaws.com" }  # change this value
    - { option: "repo1-s3-region", value: "us-east-1" }  # change this value
    - { option: "repo1-retention-full", value: "4" }
    - { option: "repo1-retention-archive", value: "4" }
    - { option: "archive-check", value: "y" }
    - { option: "archive-copy", value: "n" }
    - { option: "archive-async", value: "y" }
    - { option: "archive-get-queue-max", value: "1GiB" }
#    - { option: "archive-push-queue-max", value: "100GiB" }
    - { option: "spool-path", value: "/var/spool/pgbackrest" }
    - { option: "repo1-bundle", value: "y" }
    - { option: "repo1-block", value: "y" }
    - { option: "start-fast", value: "y" }
    - { option: "stop-auto", value: "y" }
    - { option: "link-all", value: "y" }
    - { option: "resume", value: "n" }
    - { option: "backup-standby", value: "y" }  # when set to 'y', standby servers will be automatically added to the stanza section.
    - { option: "process-max", value: "2" }
  stanza:  # [stanza_name] section
    - { option: "process-max", value: "4" }
    - { option: "log-level-console", value: "info" }
    - { option: "recovery-option", value: "recovery_target_action=promote" }
    - { option: "pg1-socket-path", value: "{{ postgresql_unix_socket_dir }}" }
    - { option: "pg1-path", value: "{{ postgresql_data_dir }}" }

pgbackrest_archive_command: "pgbackrest --stanza={{ pgbackrest_stanza }} archive-push %p"

pgbackrest config (Hetzner S3)

# An example of a configuration using Hetzner Object Storage (S3 bucket)

pgbackrest_install: true
pgbackrest_install_from_pgdg_repo: true
pgbackrest_stanza: "{{ patroni_cluster_name }}"  # stanza name
pgbackrest_repo_type: "s3"
pgbackrest_conf_file: "/etc/pgbackrest/pgbackrest.conf"
pgbackrest_conf:
  global:  # [global] section
    - { option: "log-level-file", value: "detail" }
    - { option: "log-path", value: "/var/log/pgbackrest" }
    - { option: "repo1-type", value: "{{ pgbackrest_repo_type | lower }}" }
    - { option: "repo1-path", value: "/pgbackrest" }  # logical path in bucket
    - { option: "repo1-s3-key", value: "YOUR_ACCESS_KEY" }  # change this value
    - { option: "repo1-s3-key-secret", value: "YOUR_SECRET_KEY" }  # change this value
    - { option: "repo1-s3-bucket", value: "YOUR_BUCKET_NAME" }  # change this value
    - { option: "repo1-s3-endpoint", value: "https://fsn1.your-objectstorage.com" }  # change this value (region)
    - { option: "repo1-s3-region", value: "fsn1" }  # change this value
    - { option: "repo1-s3-uri-style", value: "path" }
    - { option: "repo1-retention-full", value: "4" }
    - { option: "repo1-retention-archive", value: "4" }
    - { option: "archive-check", value: "y" }
    - { option: "archive-copy", value: "n" }
    - { option: "archive-async", value: "y" }
    - { option: "archive-get-queue-max", value: "1GiB" }
#    - { option: "archive-push-queue-max", value: "100GiB" }
    - { option: "spool-path", value: "/var/spool/pgbackrest" }
    - { option: "repo1-bundle", value: "y" }
    - { option: "repo1-block", value: "y" }
    - { option: "start-fast", value: "y" }
    - { option: "stop-auto", value: "y" }
    - { option: "link-all", value: "y" }
    - { option: "resume", value: "n" }
    - { option: "backup-standby", value: "y" }  # when set to 'y', standby servers will be automatically added to the stanza section.
    - { option: "process-max", value: "2" }
  stanza:  # [stanza_name] section
    - { option: "process-max", value: "4" }
    - { option: "log-level-console", value: "info" }
    - { option: "recovery-option", value: "recovery_target_action=promote" }
    - { option: "pg1-socket-path", value: "{{ postgresql_unix_socket_dir }}" }
    - { option: "pg1-path", value: "{{ postgresql_data_dir }}" }

pgbackrest_archive_command: "pgbackrest --stanza={{ pgbackrest_stanza }} archive-push %p"

pgbackrest config (GCS)

# An example of a configuration using GCS

pgbackrest_install: true
pgbackrest_install_from_pgdg_repo: true
pgbackrest_stanza: "{{ patroni_cluster_name }}"  # stanza name
pgbackrest_repo_type: "gcs"
pgbackrest_conf_file: "/etc/pgbackrest/pgbackrest.conf"
pgbackrest_conf:
  global:  # [global] section
    - { option: "log-level-file", value: "detail" }
    - { option: "log-path", value: "/var/log/pgbackrest" }
    - { option: "repo1-type", value: "{{ pgbackrest_repo_type | lower }}" }
    - { option: "repo1-path", value: "/pgbackrest" }  # logical path in bucket
    - { option: "repo1-gcs-key", value: "{{ postgresql_home_dir }}/gcs-key.json" }  # change this value (path to GCS service account key file)
    - { option: "repo1-gcs-bucket", value: "YOUR_BUCKET_NAME" }  # change this value
    - { option: "repo1-retention-full", value: "4" }
    - { option: "repo1-retention-archive", value: "4" }
    - { option: "archive-check", value: "y" }
    - { option: "archive-copy", value: "n" }
    - { option: "archive-async", value: "y" }
    - { option: "archive-get-queue-max", value: "1GiB" }
#    - { option: "archive-push-queue-max", value: "100GiB" }
    - { option: "spool-path", value: "/var/spool/pgbackrest" }
    - { option: "repo1-bundle", value: "y" }
    - { option: "repo1-block", value: "y" }
    - { option: "start-fast", value: "y" }
    - { option: "stop-auto", value: "y" }
    - { option: "link-all", value: "y" }
    - { option: "resume", value: "n" }
    - { option: "backup-standby", value: "y" }  # when set to 'y', standby servers will be automatically added to the stanza section.
    - { option: "process-max", value: "2" }
  stanza:  # [stanza_name] section
    - { option: "process-max", value: "4" }
    - { option: "log-level-console", value: "info" }
    - { option: "recovery-option", value: "recovery_target_action=promote" }
    - { option: "pg1-socket-path", value: "{{ postgresql_unix_socket_dir }}" }
    - { option: "pg1-path", value: "{{ postgresql_data_dir }}" }

pgbackrest_archive_command: "pgbackrest --stanza={{ pgbackrest_stanza }} archive-push %p"

pgbackrest config (Azure Blob Storage)

# An example of a configuration using Azure Blob Storage

pgbackrest_install: true
pgbackrest_install_from_pgdg_repo: true
pgbackrest_stanza: "{{ patroni_cluster_name }}"  # stanza name
pgbackrest_repo_type: "azure"
pgbackrest_conf_file: "/etc/pgbackrest/pgbackrest.conf"
pgbackrest_conf:
  global:  # [global] section
    - { option: "log-level-file", value: "detail" }
    - { option: "log-path", value: "/var/log/pgbackrest" }
    - { option: "repo1-type", value: "{{ pgbackrest_repo_type | lower }}" }
    - { option: "repo1-path", value: "/pgbackrest" }  # logical path in Azure Blob container
    - { option: "repo1-azure-key", value: "YOUR_AZURE_STORAGE_ACCOUNT_KEY" }  # change this value
    - { option: "repo1-azure-key-type", value: "shared" }  # key type: 'shared' or 'sas'
    - { option: "repo1-azure-account", value: "YOUR_AZURE_STORAGE_ACCOUNT" }  # change this value
    - { option: "repo1-azure-container", value: "YOUR_AZURE_STORAGE_CONTAINER" }  # change this value
    - { option: "repo1-retention-full", value: "4" }
    - { option: "repo1-retention-archive", value: "4" }
    - { option: "archive-check", value: "y" }
    - { option: "archive-copy", value: "n" }
    - { option: "archive-async", value: "y" }
    - { option: "archive-get-queue-max", value: "1GiB" }
#    - { option: "archive-push-queue-max", value: "100GiB" }
    - { option: "spool-path", value: "/var/spool/pgbackrest" }
    - { option: "repo1-bundle", value: "y" }
    - { option: "repo1-block", value: "y" }
    - { option: "start-fast", value: "y" }
    - { option: "stop-auto", value: "y" }
    - { option: "link-all", value: "y" }
    - { option: "resume", value: "n" }
    - { option: "backup-standby", value: "y" }  # when set to 'y', standby servers will be automatically added to the stanza section.
    - { option: "process-max", value: "2" }
  stanza:  # [stanza_name] section
    - { option: "process-max", value: "4" }
    - { option: "log-level-console", value: "info" }
    - { option: "recovery-option", value: "recovery_target_action=promote" }
    - { option: "pg1-socket-path", value: "{{ postgresql_unix_socket_dir }}" }
    - { option: "pg1-path", value: "{{ postgresql_data_dir }}" }

pgbackrest_archive_command: "pgbackrest --stanza={{ pgbackrest_stanza }} archive-push %p"

cron jobs config

# By default, the cron jobs is created on the database server.
# If 'repo_host' is defined, the cron jobs will be created on the pgbackrest server.
pgbackrest_cron_jobs:
  - name: "pgBackRest: Full Backup"
    file: "/etc/cron.d/pgbackrest-{{ patroni_cluster_name }}"
    user: "postgres"
    minute: "00"
    hour: "3"
    day: "*"
    month: "*"
    weekday: "0"
    job: "if [ $(psql -tAXc 'select pg_is_in_recovery()') = 'f' ]; then pgbackrest --stanza={{ pgbackrest_stanza }} --type=full backup; fi"
  - name: "pgBackRest: Diff Backup"
    file: "/etc/cron.d/pgbackrest-{{ patroni_cluster_name }}"
    user: "postgres"
    minute: "00"
    hour: "3"
    day: "*"
    month: "*"
    weekday: "1-6"
    job: "if [ $(psql -tAXc 'select pg_is_in_recovery()') = 'f' ]; then pgbackrest --stanza={{ pgbackrest_stanza }} --type=diff backup; fi"
  - name: "pgBackRest: Incr Backup"
    file: "/etc/cron.d/pgbackrest-{{ patroni_cluster_name }}"
    user: "postgres"
    minute: "00"
    hour: "*/4"
    day: "*"
    month: "*"
    weekday: "1-6"
    job: "if [ $(psql -tAXc 'select pg_is_in_recovery()') = 'f' ]; then pgbackrest --stanza={{ pgbackrest_stanza }} --type=incr backup; fi"

WAL-G

tip

WAL-G documentation

To use WAL-G, specify the wal_g_install: true variable.

Examples of configuration variables:

wal-g config (Minio S3)

# An example of a configuration using S3 (Minio)

wal_g_install: true
wal_g_version: "3.0.5"
wal_g_path: "/usr/local/bin/wal-g --config {{ postgresql_home_dir }}/.walg.json"
wal_g_json:
  - { option: "AWS_ACCESS_KEY_ID", value: "YOUR_MINIO_ACCESS_KEY_ID" }  # change this value
  - { option: "AWS_SECRET_ACCESS_KEY", value: "YOUR_MINIO_SECRET_ACCESS_KEY" }  # change this value
  - { option: "AWS_ENDPOINT", value: "http://YOUR_MINIO_ADDRESS:9000" }  # change this value
  - { option: "AWS_S3_FORCE_PATH_STYLE", value: "true" }
  - { option: "WALG_S3_PREFIX", value: "s3://YOUR_MINIO_BUCKET" }  # change this value
  - { option: "WALG_COMPRESSION_METHOD", value: "brotli" }  # or "lz4", "lzma", "zstd"
  - { option: "WALG_DELTA_MAX_STEPS", value: "6" }  # determines how many delta backups can be between full backups
  - { option: "WALG_UPLOAD_CONCURRENCY", value: "2" }
  - { option: "WALG_UPLOAD_DISK_CONCURRENCY", value: "2" }
  - { option: "WALG_DOWNLOAD_CONCURRENCY", value: "4" }
  - { option: "WALG_ALIVE_CHECK_INTERVAL", value: "1m" }
  - { option: "PGDATA", value: "{{ postgresql_data_dir }}" }
  - { option: "PGHOST", value: "{{ postgresql_unix_socket_dir }}" }
  - { option: "PGPORT", value: "{{ postgresql_port }}" }
  - { option: "PGUSER", value: "{{ patroni_superuser_username }}" }

wal_g_archive_command: "{{ wal_g_path }} wal-push %p"

wal-g config (AWS S3)

# An example of a configuration using AWS S3

wal_g_install: true
wal_g_version: "3.0.5"
wal_g_path: "/usr/local/bin/wal-g --config {{ postgresql_home_dir }}/.walg.json"
wal_g_json:
  - { option: "AWS_ACCESS_KEY_ID", value: "YOUR_AWS_ACCESS_KEY_ID" }  # change this value
  - { option: "AWS_SECRET_ACCESS_KEY", value: "YOUR_AWS_SECRET_ACCESS_KEY" }  # change this value
  - { option: "AWS_REGION", value: "YOUR_AWS_REGION" }  # change this value (e.g., us-east-1)
  - { option: "WALG_S3_PREFIX", value: "s3://YOUR_AWS_BUCKET" }  # change this value
  - { option: "WALG_COMPRESSION_METHOD", value: "brotli" }  # or "lz4", "lzma", "zstd"
  - { option: "WALG_DELTA_MAX_STEPS", value: "6" }  # determines how many delta backups can be between full backups
  - { option: "WALG_UPLOAD_CONCURRENCY", value: "2" }
  - { option: "WALG_UPLOAD_DISK_CONCURRENCY", value: "2" }
  - { option: "WALG_DOWNLOAD_CONCURRENCY", value: "4" }
  - { option: "WALG_ALIVE_CHECK_INTERVAL", value: "1m" }
  - { option: "PGDATA", value: "{{ postgresql_data_dir }}" }
  - { option: "PGHOST", value: "{{ postgresql_unix_socket_dir }}" }
  - { option: "PGPORT", value: "{{ postgresql_port }}" }
  - { option: "PGUSER", value: "{{ patroni_superuser_username }}" }

wal_g_archive_command: "{{ wal_g_path }} wal-push %p"

wal-g config (Hetzner S3)

# An example of a configuration using Hetzner Object Storage (S3 bucket)

wal_g_install: true
wal_g_version: "3.0.5"
wal_g_path: "/usr/local/bin/wal-g --config {{ postgresql_home_dir }}/.walg.json"
wal_g_json:
  - { option: "AWS_ACCESS_KEY_ID", value: "YOUR_ACCESS_KEY" }  # change this value
  - { option: "AWS_SECRET_ACCESS_KEY", value: "YOUR_SECRET_KEY" }  # change this value
  - { option: "AWS_ENDPOINT", value: "https://fsn1.your-objectstorage.com" }  # change this value (region)
  - { option: "AWS_REGION", value: "fsn1" }  # change this value
  - { option: "WALG_S3_PREFIX", value: "s3://YOUR_BUCKET_NAME" }  # change this value
  - { option: "AWS_S3_FORCE_PATH_STYLE", value: "true" }
  - { option: "WALG_COMPRESSION_METHOD", value: "brotli" }  # or "lz4", "lzma", "zstd"
  - { option: "WALG_DELTA_MAX_STEPS", value: "6" }  # determines how many delta backups can be between full backups
  - { option: "WALG_UPLOAD_CONCURRENCY", value: "2" }
  - { option: "WALG_UPLOAD_DISK_CONCURRENCY", value: "2" }
  - { option: "WALG_DOWNLOAD_CONCURRENCY", value: "4" }
  - { option: "WALG_ALIVE_CHECK_INTERVAL", value: "1m" }
  - { option: "PGDATA", value: "{{ postgresql_data_dir }}" }
  - { option: "PGHOST", value: "{{ postgresql_unix_socket_dir }}" }
  - { option: "PGPORT", value: "{{ postgresql_port }}" }
  - { option: "PGUSER", value: "{{ patroni_superuser_username }}" }

wal_g_archive_command: "{{ wal_g_path }} wal-push %p"

wal-g config (GCS)

# An example of a configuration using GCS

wal_g_install: true
wal_g_version: "3.0.5"
wal_g_path: "/usr/local/bin/wal-g --config {{ postgresql_home_dir }}/.walg.json"
wal_g_json:
  - { option: "GOOGLE_APPLICATION_CREDENTIALS", value: "{{ postgresql_home_dir }}/gcs-key.json" }  # change this value (path to GCS service account key file)
  - { option: "WALG_GS_PREFIX", value: "gs://YOUR_GCS_BUCKET" }  # change this value
  - { option: "WALG_COMPRESSION_METHOD", value: "brotli" }  # or "lz4", "lzma", "zstd"
  - { option: "WALG_DELTA_MAX_STEPS", value: "6" }  # determines how many delta backups can be between full backups
  - { option: "WALG_UPLOAD_CONCURRENCY", value: "2" }
  - { option: "WALG_UPLOAD_DISK_CONCURRENCY", value: "2" }
  - { option: "WALG_DOWNLOAD_CONCURRENCY", value: "4" }
  - { option: "WALG_ALIVE_CHECK_INTERVAL", value: "1m" }
  - { option: "PGDATA", value: "{{ postgresql_data_dir }}" }
  - { option: "PGHOST", value: "{{ postgresql_unix_socket_dir }}" }
  - { option: "PGPORT", value: "{{ postgresql_port }}" }
  - { option: "PGUSER", value: "{{ patroni_superuser_username }}" }

wal_g_archive_command: "{{ wal_g_path }} wal-push %p"

wal-g config (Azure Blob Storage)

# An example of a configuration using Azure Blob Storage

wal_g_install: true
wal_g_version: "3.0.5"
wal_g_path: "/usr/local/bin/wal-g --config {{ postgresql_home_dir }}/.walg.json"
wal_g_json:
  - { option: "AZURE_STORAGE_ACCOUNT", value: "YOUR_AZURE_STORAGE_ACCOUNT" }  # change this value
  - { option: "AZURE_STORAGE_ACCESS_KEY", value: "YOUR_AZURE_STORAGE_ACCOUNT_KEY" }  # change this value
  - { option: "WALG_AZ_PREFIX", value: "azure://YOUR_AZURE_STORAGE_CONTAINER" }  # change this value
  - { option: "WALG_COMPRESSION_METHOD", value: "brotli" }  # or "lz4", "lzma", "zstd"
  - { option: "WALG_DELTA_MAX_STEPS", value: "6" }  # determines how many delta backups can be between full backups
  - { option: "WALG_UPLOAD_CONCURRENCY", value: "2" }
  - { option: "WALG_UPLOAD_DISK_CONCURRENCY", value: "2" }
  - { option: "WALG_DOWNLOAD_CONCURRENCY", value: "4" }
  - { option: "WALG_ALIVE_CHECK_INTERVAL", value: "1m" }
  - { option: "PGDATA", value: "{{ postgresql_data_dir }}" }
  - { option: "PGHOST", value: "{{ postgresql_unix_socket_dir }}" }
  - { option: "PGPORT", value: "{{ postgresql_port }}" }
  - { option: "PGUSER", value: "{{ patroni_superuser_username }}" }

wal_g_archive_command: "{{ wal_g_path }} wal-push %p"

cron jobs config

# Define job_parts outside of wal_g_cron_jobs
# Ensure there is a space at the beginning of each part to prevent commands from concatenating.
wal_g_backup_command:
  - "curl -I -s http://{{ inventory_hostname }}:{{ patroni_restapi_port }} | grep 200"
  - " && {{ wal_g_path }} backup-push {{ postgresql_data_dir }} > {{ postgresql_log_dir }}/walg_backup.log 2>&1"
wal_g_delete_command:
  - "curl -I -s http://{{ inventory_hostname }}:{{ patroni_restapi_port }} | grep 200"
  - " && {{ wal_g_path }} delete retain FULL 4 --confirm > {{ postgresql_log_dir }}/walg_delete.log 2>&1"

wal_g_cron_jobs:
  - name: "WAL-G: Create daily backup"
    user: "postgres"
    file: /etc/cron.d/walg
    minute: "00"
    hour: "3"
    day: "*"
    month: "*"
    weekday: "*"
    job: "{{ wal_g_backup_command | join('') }}"
  - name: "WAL-G: Delete old backups"
    user: "postgres"
    file: /etc/cron.d/walg
    minute: "30"
    hour: "6"
    day: "*"
    month: "*"
    weekday: "*"
    job: "{{ wal_g_delete_command | join('') }}"
